High Strength Twin Screw Barrel for Plastic Compounding Extruder

10 pezzi
MOQ
Negetation
prezzo
High Strength Twin Screw Barrel for Plastic Compounding Extruder
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Caratteristiche del prodotto: Parti di estrusore in lega di nichel
Vantaggio: Resistenza all'usura
Codice SA: 8477900000
Tipo di rivestimento: fodera integrata
Tipo di macchine dell'espulsore di applicazione: tipo 75 e superiore alla latta 75 fatta dalla fodera composita
Area di applicazione: Produzione di plastica, edilizia, prodotti farmaceutici, produzione chimica, riciclaggio e così via
Materiale: HC276, lega a base di nichel OS65, acciaio 45, PTRW6
Rapporto di prova del macchinario: SÌ
Grasso: SÌ
Evidenziare:

High Strength Twin Screw Barrel

,

Plastic Compounding Extruder Screw Barrel

,

Heat Exchange Screw Barrel
Informazioni di base
Luogo di origine: Jiangsu, Cina
Marca: BLM
Certificazione: ISO 9001
Numero di modello: Standard o personalizzato
Termini di pagamento e spedizione
Imballaggi particolari: Imballaggio in custodia in legno
Tempi di consegna: 30~60 giorni
Termini di pagamento: T/T, Western Union, MoneyGram
Capacità di alimentazione: secondo i prodotti personalizzati
Descrizione di prodotto
Extruder Barrel - Premium Extruder Parts for Nut Conveyor & Extrusion Equipment
Product Description
Looking for high-performance extruder parts to ensure stable plasticizing and conveying in your engineering plastic extrusion line? Our Extruder Barrel is a core component specially designed for nut conveyors and various extruders processing engineering plastics, playing a crucial role in heating, melting, and homogenizing engineering plastic raw materials. As essential extruder parts, it is widely applied in engineering plastic modification, composite material production (based on engineering plastics), and rubber extrusion industries.
Material & Durability Advantages

Crafted from high-grade materials to meet the harsh working conditions of engineering plastic extrusion processes, our extruder barrel offers exceptional durability.
These premium materials ensure superior wear resistance, corrosion resistance, and high-temperature tolerance (up to 400°C) for the extruder parts, perfectly adapting to the high-temperature and high-pressure requirements of engineering plastic processing. The nitrided surface achieves hardness above HV900, effectively extending the service life of the extruder barrel and maintaining stable dimensional accuracy even after long-term operation with high-filler engineering materials (up to 50% glass fiber content).
Core Features
  • Precision machining with strict tolerance control (±0.015mm), ensuring perfect fit with screws and uniform plasticizing of engineering plastics, avoiding material defects caused by uneven melting
  • Segmented heating zone design for accurate temperature control (temperature error ±2°C), matching the specific melting temperature range of different engineering plastics and avoiding local overheating or insufficient melting
  • Customizable specifications (diameter: φ20mm - φ600mm; length-diameter ratio: 20:1 to 40:1) to match different extruder models and process requirements
  • Smooth inner wall treatment reduces material adhesion and friction, facilitating self-cleaning and preventing material carbonization
  • Compatible with major extruder brands such as Coperion, Berstorff, Leistriz, and domestic mainstream nut conveyor and extruder models

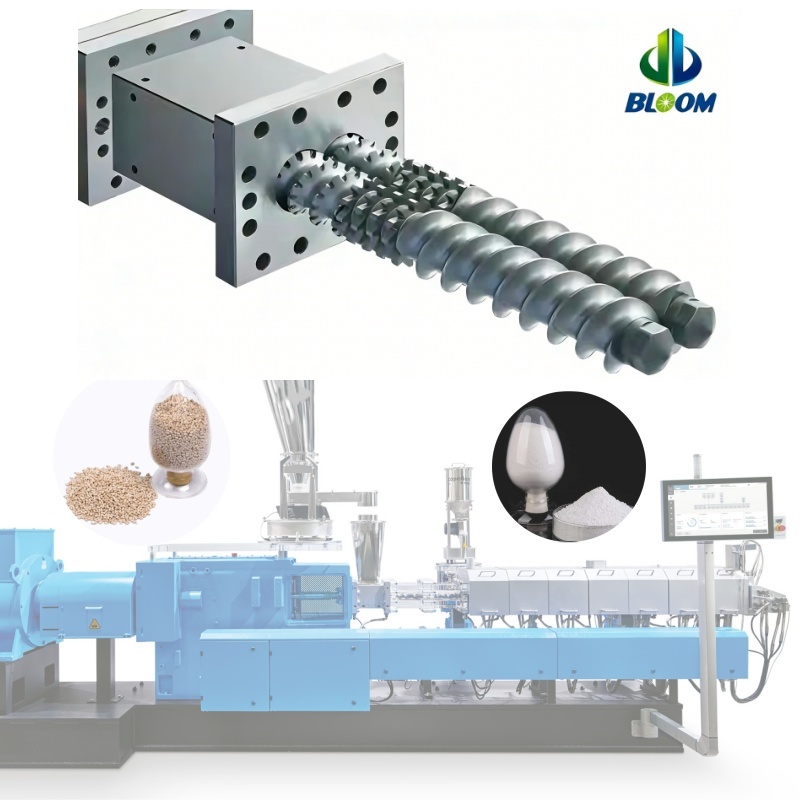

High Strength Twin Screw Barrel for Plastic Compounding Extruder 0
Refernce cases

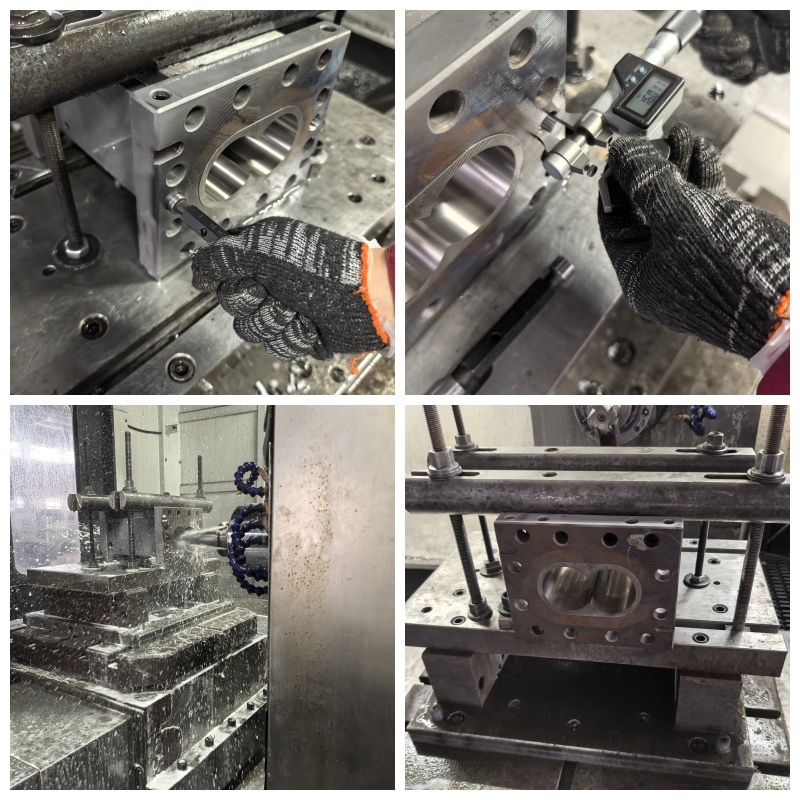

High Strength Twin Screw Barrel for Plastic Compounding Extruder 1

About Bloom

Bloom (Suzhou) Materials Co., Ltd specializes in plastic extruder accessories including screw elements, barrels, shafts, and more. We focus on ultra-high wear resistance, corrosion resistance, and high temperature resistant components. Custom solutions available.

With stable quality, competitive pricing, timely delivery, and excellent after-sales service, we look forward to collaborating with you.

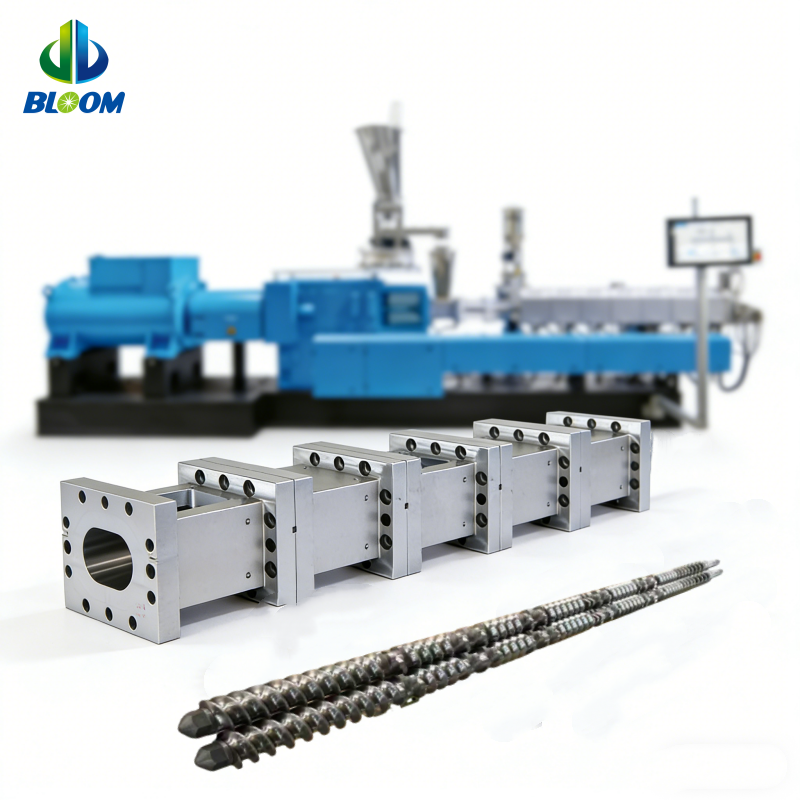

High Strength Twin Screw Barrel for Plastic Compounding Extruder 2
Package and Shipment

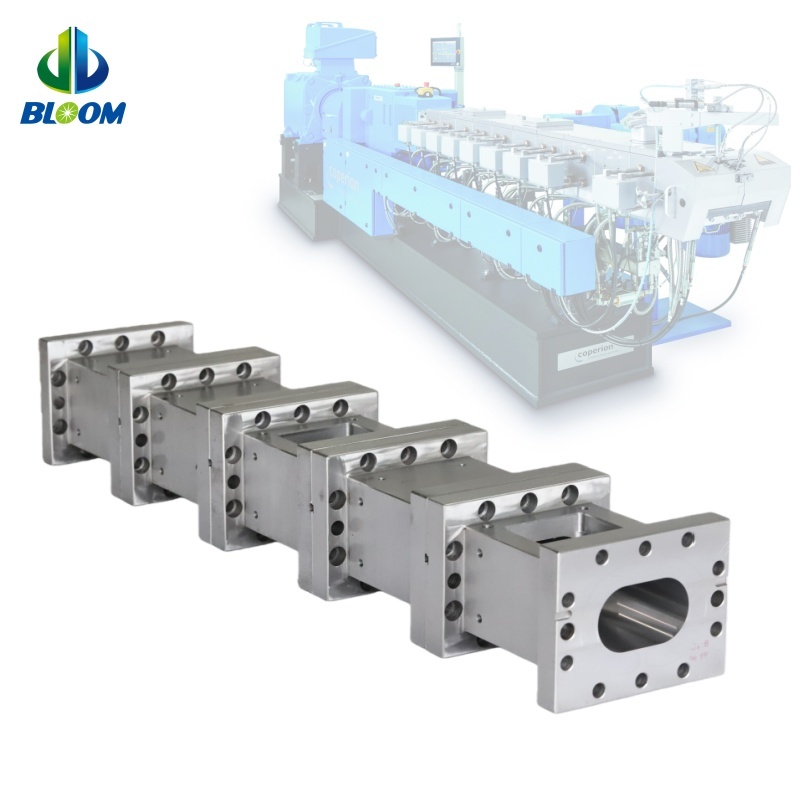

High Strength Twin Screw Barrel for Plastic Compounding Extruder 3
Applications

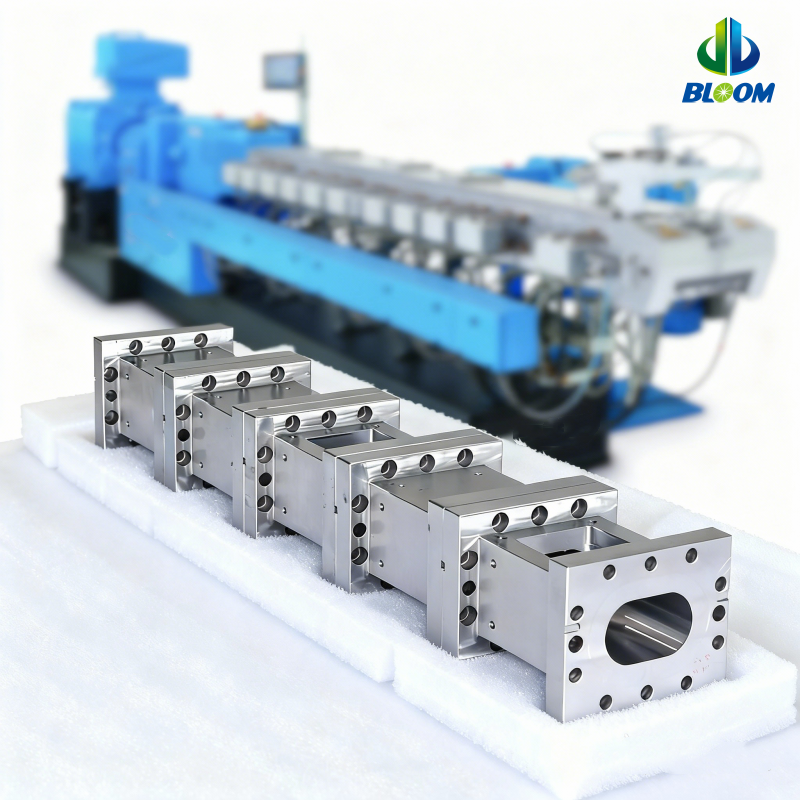

High Strength Twin Screw Barrel for Plastic Compounding Extruder 4
FAQs
Q: Do you offer wholesale or distributor cooperation?
A: Yes. We accept partners worldwide. Please send detailed requests through our CONTACT US form.
Q: What is your shipping time?
A: Shipping time depends on order quantity and items. For OEM orders, typically 25-65 days based on specific requirements.
Q: What price terms do you accept?
A: We accept EXW, FOB, and CIF terms.
